App Refactoring - Our 'Edit' Option (Part 1)
This step is similar to our 'Add' Fragment implementation but there's a bit more complexity involved as we need to
- Create a new Fragment (EditFragment) (similar to Add)
- Recycle the 'Edit' Layout for use with our new Fragment (similar to Add)
and
- Pass the relevant Coffee Data from the 'Coffee List' (managed within the CoffeeFragment) to the EditFragment
AND
- Implement a callback interface from our Fragment to our Activity to handle the 'favourites star' toggle and the update button.
Note: We could simply have our EditFragment implement an onClick Listener, but this is an opportunity to demonstrate how to communicate between a Fragment and an Activity.

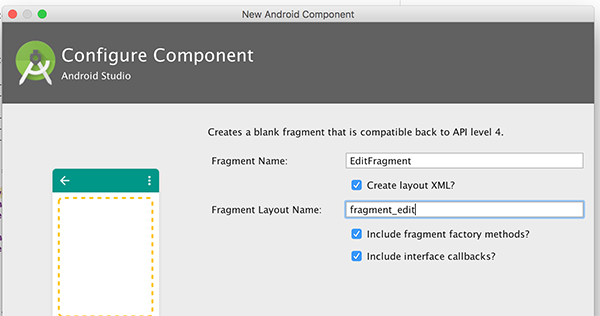

So first of all, go ahead and create the Fragment (and it's associated layout) but this time, make sure you choose to Include interface Callbacks, like so .
Then, modify the boilerplate code so that the newInstance() method takes a 'Bundle' object (called coffeeBundle) as a parameter.
Now, our current onItemClick() method inside our CoffeeFragment, looks like this
@Override public void onItemClick(AdapterView<?> parent, View view, int position, long id)
{
Bundle activityInfo = new Bundle();
activityInfo.putInt("coffeeID", view.getId());
Intent goEdit = new Intent(getActivity(), Edit.class);
goEdit.putExtras(activityInfo);
getActivity().startActivity(goEdit);
}
so see if you can implement the necessary code to 'switch to' the EditFragment instead of launching the Edit activity (We'll revist this code in Part 2 to complete the Edit feature).
Hint: have a look at your Home activity and how we manage our Fragments.
Next, you need to update your layout, so again, have a go at that, but to help you along here's the layout I copied from our 'Add' and refactored to suit our needs.
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context="ie.cm.fragments.AddFragment">
<RelativeLayout
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:gravity="center"
android:layout_gravity="center_horizontal|bottom">
<LinearLayout
android:id="@+id/linearLayout1"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:orientation="vertical"
android:paddingBottom="5dp"
android:paddingLeft="10dp"
android:paddingRight="10dp"
android:paddingTop="5dp" >
<TableLayout
android:id="@+id/tableLayout1"
android:layout_width="match_parent"
android:layout_height="wrap_content" >
<TableRow
android:id="@+id/tableRow1"
android:layout_width="wrap_content"
android:layout_height="0dp"
android:layout_weight="1"
tools:ignore="UselessParent" >
<TextView
android:id="@+id/coffeeNameTextView"
android:text="The Title"
tools:ignore="HardcodedText"
android:layout_width="310dp"
android:textSize="24dp"
android:textColor="@color/colorPrimary"
android:layout_marginLeft="5dp" />
<ImageView
android:id="@+id/favouriteImageView"
android:layout_width="40dp"
android:layout_height="40dp"
android:src="@drawable/ic_favourite_off"
tools:ignore="ContentDescription"
android:onClick="toggle" />
</TableRow>
</TableLayout>
<TextView
android:id="@+id/coffeeShopTextView"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="The Description..."
android:textColor="@color/bannerBGColor"
tools:ignore="HardcodedText"
android:textSize="18dp"
android:layout_marginLeft="5dp" />
</LinearLayout>
<TextView
android:id="@+id/barTextView"
style="@style/banner"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="@string/coffeeDetailsLbl"
android:layout_below="@+id/linearLayout1"
android:layout_alignParentStart="true" />
<RatingBar
android:id="@+id/coffeeRatingBar"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:numStars="5"
android:rating="2"
android:stepSize="1"
android:progressTint="@color/bannerBGColor"
android:layout_above="@+id/updateCoffeeBtn"
android:layout_centerHorizontal="true" />
<EditText
android:id="@+id/nameEditText"
android:layout_width="200dp"
android:layout_height="wrap_content"
android:ems="10"
android:inputType="textShortMessage"
android:layout_below="@+id/barTextView"
android:layout_alignStart="@+id/shopEditText">
<requestFocus />
</EditText>
<EditText
android:id="@+id/shopEditText"
android:layout_width="200dp"
android:layout_height="wrap_content"
android:ems="10"
android:inputType="textShortMessage"
android:layout_alignTop="@+id/shopTextView"
android:layout_alignEnd="@+id/coffeeRatingBar">
</EditText>
<TextView
android:id="@+id/ratingTextView"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/coffeeRatingLbl"
android:textColor="@color/appFontColor"
android:textSize="18sp"
android:layout_above="@+id/coffeeRatingBar"
android:layout_alignStart="@+id/priceTextView" />
<TextView
android:id="@+id/nameTextView"
android:layout_width="60dp"
android:layout_height="20dp"
android:gravity="top"
android:text="@string/coffeeNameLbl"
android:textColor="@color/appFontColor"
android:textSize="18sp"
android:layout_below="@+id/barTextView"
android:layout_toStartOf="@+id/nameEditText"
android:layout_marginTop="2dp" />
<EditText
android:id="@+id/priceEditText"
android:layout_width="100dp"
android:layout_height="wrap_content"
android:ems="10"
android:inputType="numberDecimal"
android:layout_below="@+id/shopEditText"
android:layout_alignStart="@+id/shopEditText" />
<TextView
android:id="@+id/shopTextView"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/coffeeShopLbl"
android:textColor="@color/appFontColor"
android:textSize="18sp"
android:layout_below="@+id/nameEditText"
android:layout_alignStart="@+id/nameTextView" />
<TextView
android:id="@+id/priceTextView"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/coffeePriceLbl"
android:textColor="@color/appFontColor"
android:textSize="18sp"
android:layout_alignTop="@+id/priceEditText"
android:layout_alignStart="@+id/shopTextView" />
<Button
android:id="@+id/updateCoffeeBtn"
style="@android:style/Holo.Light.ButtonBar"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:drawableTop="@drawable/ic_save_coffee"
android:text="@string/updateCoffeeBtnLbl"
android:layout_alignParentBottom="true"
android:layout_centerHorizontal="true"
android:layout_marginBottom="38dp"
android:onClick="update"/>
</RelativeLayout>
</FrameLayout>
Run you app and confirm you get a blank Edit Screen when you select a row in the coffee list, like so:
But you get an error instead??
Can you try a very rudementary fix to get the app running?
